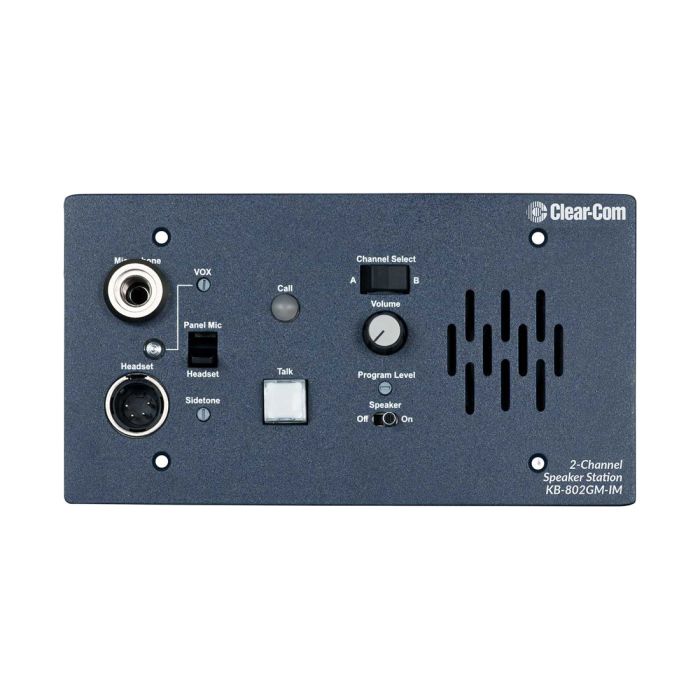

Encore 2-Channel Remote Speaker Station with Gooseneck Mic Connector for Industrial/Marine Use

FEATURES:
• 2-Channel Remote Speaker Station with Gooseneck Mic Connector
• Selectable one- or two-channel communication
• IP-20 environmental rating
• Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2
• Marine Certification compliant with DNVGL-CG-0339 (2016)
• Visual and audible call signaling with bright LED indicator
• Mic jack for gooseneck mic plus VOX circuitry
• Optional 4-wire daughter boards
• Wall or console mount, or optional V-BOX for portable or desktop use

SPECIFICATIONS:
Panel Microphone Input
Input Type: Electret
Input Impedance: >=2K
Mic Limiter Threshold: -2 dBu ±3 dB
Mic Limiter Range: >= 15 dB
Headset Microphone Input
Input Type: Dynamic
Input Impedance: >= 1K
Mic Limiter Threshold: -2 dBu ± 3 dB
Mic Limiter Range: >= 15 dB
Program Line Input
Maximum Level before Clipping: >= 20 dBu
Input Impedance: >= 5K
Headset Output
Load Impedance: >= 8
Output Impedance: <= 25
Output Limiter Threshold: +5 dBu ± 3 dB
Maximum Output Level before Distortion: >= 17 dBu
Speaker Output
Load Impedance: >= 4
Max Output Level before
1% Distortion: 20 dBu ± 2 dBu
Partyline Output
Off Noise: < -74 dBu
Output Impedance: >10K
Partyline Input
Crosstalk: < -60 dB
Max level before Clipping : >= 12 dBu
Sidetone Null Capability: > 25 dB
Frequency Response
Panel Mic – Partyline: 300 – 16 KHz ± 3 dB
Headset Mic – Partyline: 300 – 15 KHz ± 3 dB
Program Input – Headset Out: 200 – 18 KHz ± 3 dB
Program Input – Speaker Out: 200 – 18 KHz ± 3 dB
Partyline – Headset Out: 200 – 18 KHz ± 3 dB
Partyline – Speaker Out: 200 – 18 KHz ± 3 dB
Max Distortion
Panel Mic – Partyline: <= 0.5%
Headset Mic – Partyline: <= 0.5%
Program Input – Headset Out: <= 0.2%
Program Input – Speaker Out: <= 0.5%
Partyline – Headset Out: <= 0.2%
Partyline – Speaker Out: <= 0.5%
Noise
Panel Mic – Partyline: < -65 dBu
Headset Mic – Partyline: < -70 dBu
Program Input – Headset Out: < -60 dBu
Program Input – Speaker Out: < -60 dBu
Partyline – Headset Out: < -50 dBu
Partyline – Speaker Out: < -50 dBu
Max Gain
Panel Mic – Partyline: >= 37 dB
Headset Mic – Partyline: 41 dB ± 2 dB
Program Input – Headset Out: >= 18 dB
Program Input – Speaker Out: >= 24 dB
Partyline – Headset Out: >= 34 dB
Partyline – Speaker Out: >= 40 dB
Power
Input Voltage Range: 20-30 VDC
Input Current (Idle): <= 90 mA
Input Current (Max): <=110 mA
Internal Adjustments and Connections
Intercom: Line Five terminal connector
Program Input Three terminal connector
Option Switches: Three DIP switches
Call Signal Jumper 3: Three sets of options jumpers
Call Alert Tone Level Control: Level adjustment control
Front Panel Connectors
Panel Mic: (1) 1/4 in. (0.64 cm) panel mounting jack
Headset: (1) XLR-4M
Front Panel Controls & Indicators
(1) Panel /headset mic switch
(1) Program monitor level control
(1) Sidetone null control
(1) Talk button
(1) Call button
(1) Speaker ON-OFF switch
(1) Channel select switch
(1) Speaker volume control
(1) VOX control
(1) VOX indicator
Environmental
32 – 122°F (0 – 50°C)
Relative Humidity: 0 – 96%, non-condensing
Vibration Frequency Range: 2 – 13.2 Hz
Amplitude: 1.0 mm
Peak Value Frequency Range: 13.2 – 100 Hz,
Acceleration Amplitude: 0.7 g
EMC: DNVGL-CG-0339 – Class B
Enclosure: IP-20
Dimensions
4.5 x 8.25 x 1.75 (HxWxD)
(114 x 210 x 44 mm)
Weight
1.1 lb. (0.50 Kg)
